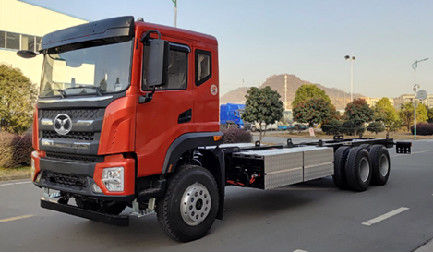

DongFeng G.V.W 25T EV Flat electric truck Range 240KM
| Place of Origin | China |
|---|---|
| Brand Name | dongfeng |
| Model Number | DFD1250GLEVJ1 |
| Minimum Order Quantity | 5 unit |
| Price | 82580 USD FCA |
| Packaging Details | No |
| Delivery Time | 45-60 Day |
| Payment Terms | T/T |
| Supply Ability | 200 Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
<
WuHan JunFeng AUTOMOBILE CO., LTD 20240822 |
|
| Model | DFD1250GLEVJ1 |
| Picture | |
| basic specs | |
| Overall Length | 11750 |
| Overall Width | 2510 |
| Overall Height | 2280, 3030, 3100 |
| Wheelbase | 5850+1350 |
| Front/Rear Overhang | 1410/3150 |
| Approach/Departure Angle | 19/24 |
| Curb Weight | 10970 |
| G.V.W | 25000 |
| Passenger Seats | 2/3 |
| Max Speed | 89 |
| Distance Between Wheel Tires (Front/Rear) | 2036/1865 |
| Max. Grade Ability | ≥20 |
| Electric System | |
| Electric Motor Model | TZ420XSKQ001 / TZ420XSTQQ001 |
| Motor Manufacturer | DongFeng (Domestic brand) |
| Position/Fuel type | (Middle/Lithium Iron Phosphate) |
| 电机形式/Motor Type | Permanent magnet motor |
| Motor Rated/Peak Power | 215/316 kw, 250/380 kw |
| Rated/Peak Torque | 1200/2400 N.m, 1100/2400 N.m |
| Energy Storage System | 281.92/618.24V |
| Charging Time | 2h |
| Constant Speed 40km/h, Full Load, Without A/C | Max range: 240 km |
| Operation Driving, Full Load, Without A/C | Max range: 190 km |
| Operation Driving, Full Load, With A/C | Max range: 170 km |
| Chassis | |
| Front Axle | (Dongfeng Axle 6.5t) |
| Rear Axle | (Dongfeng Axle 10t+10t) |
| Suspension | (Leaf Spring) |
| Shock Absorber | (Equipped with Suspension) |
| Wheel Steering | (Hydraulic Power Steering) |
| Transmission Shaft | (One Piece) |
| Brake | (Front and Rear Drum Brake) |
| Brake System | (Exhaust Brake, Dryer, Condenser, ABS, Gap Self-adjusting and Shoes Wear Alarm) |
| Distance Between Wheel Tires (Front/Rear) | 11.00 R20 18PR |
| Air Pump | Piston Type Without Oil |
| Others Facilities | Electronic Fan, Thermal Management System for Battery |
| Body Structure | |
| Body Structure | T712G Semi-row, 2 Seats |
| Windshield | Front Block Laminated Glass, Rear Block Tempered Glass, Anti-fly Net for Windows |
| Rear View System | Steel Frame Type Rod Type Reverse Mirror |
| AC System | Electric Air Conditioner |
| Hot Wind System | Electric Heating System |
| Defroster | Electric Defroster |
| Audio & Video System | 10 Inches, MP5, Reversing Camera, Audio with Micro Port, USB Charging Port |
| GPS | Satellite Positioning Tachograph |
| Lamps | Front and Rear Split Lamps, Front and Rear Fog Lamps, Side Turning Signals, Head Light Height Electric Adjustment Device |
| Seats | Airbag Damping Driver's Seat, Driver's Seat Belt Alarm, Electrically Adjustable |
| Paint | Domestic Paint, Custom Color |
| Instrument | CAN instrument with vehicle module |
| Others Service Parts | 4KG Fire Extinguishers*1, Sunshade Curtain for Front Windshield, Vehicle Terminal, Low-speed Alarm, Side Window Curtains |
| Secondary parameters | The parts and components are constantly updated in production. The above parameters are only for reference and are mainly based on actual vehicles. The core parameters and configuration remain unchanged. |
| Vehicle design | Dongfeng Motor Company |
| OEM customization | Wuhan Junfeng Automobile Co., Ltd. |
