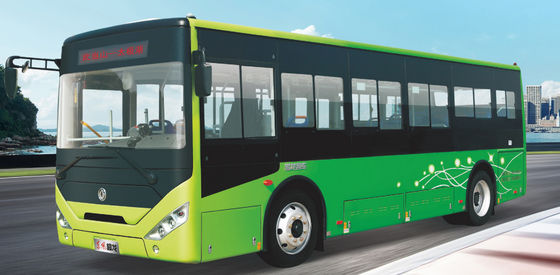

DongFeng EQ6810CTBEV4： Range of 330KM/peak power of 120KW EV BUS Seat 29-54
| Place of Origin | China |
|---|---|
| Brand Name | DongFeng |
| Model Number | EQ6810CTBEV4 |
| Minimum Order Quantity | 1 unit |
| Price | Agree prices based on different user requirements |
| Packaging Details | No |
| Delivery Time | 45-60 day |
| Payment Terms | T/T |
| Supply Ability | More than 50 vehicles per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | 330KM EV BUS,330KM Electric Bus,120KW Electric Bus |
||
|---|---|---|---|
Product Description
| Overall parameters | Length*width*height (mm) | 8086*2260*2860/1870 | |
| Height inside the carriage (mm) | 2050/1870 | ||
| Wheelbase (mm) | 4400 | ||
| Front overhang/rear overhang (mm) | 1790/1870 | ||
| Approach angle/departure angle (°) | 8/10 | ||
| Factory maximum total mass (kg) | 12500 | ||
| Rated number of passengers (person) | 54/15—29 | ||
| Maximum speed (km/h) | 69 | ||
| Track width (mm) | 1830/1700 | ||
| Chassis system | Bearing type | Full bearing | |
| Front axle/rear axle | "Dongfeng Dena Bridge 16“ | ||
| Suspension | Leaf spring suspension front 3/rear 4 | ||
| Shock absorber | telescopic shock absorber | ||
| steering | hydraulic power steering | ||
| transmission shaft | 1 segment | ||
| Brake type | Front disc rear disc | ||
| Brake | Air brake dryer condenser ABS self-adjusting arm shoe wear alarm | ||
| tyre | 245/70R19.5-16PR without spare wheel | ||
| blast pump | Oil free piston machine | ||
| other | Electronic fan | ||
| Powertrain | Motor model | TZ260XSXL540700A | |
| Motor manufacturer | Luchi Precision | ||
| Location/fuel type | Rear/Lithium Iron Phosphate | ||
| Motor type | Permanent magnet synchronous motor | ||
| Rated/peak power (kw) | 70/120 | ||
| Rated/peak torque (N · m) | 167/550 | ||
| Battery capacity (kwh)/voltage (V) | CATL151.7/502.32 | ||
| Range(40km/h constant speed method) | 330 | ||
| Body | Body structure | Front and rear wall stamping | |
| floor | Bamboo floor | ||
| Door and door pump | Front single and middle double pneumatic inner swing passenger doors | ||
| Side window | The driver's window and the auxiliary driver's window are aluminum frame sliding windows, and the rest are embedded sliding windows | ||
| Windshield | Front windshield adhesive, rear windshield toughened | ||
| Rear view system | Steel frame asymmetric manual reversing mirror | ||
| air conditioning system | Overhead electric single cooling | ||
| Defroster | Electric defroster | ||
| Audiovisual system | MP3 player with microphone jack USB charging interface | ||
| Satellite positioning system | The Beidou satellite positioning driving recorder has built-in storage and upload functions (dual 32GSD cards), 5 probes, and a 7-inch LCD display | ||
| Lamps and lanterns | Front and rear wall combined lamps | ||
| Wiper | Electric wiper | ||
| Hatch | Aluminum alloy side hatch | ||
| chair | 22+1 layout | ||
| meter | instrument with a vehicle module | ||
| other | Secondary parameters | The parts and components are constantly updated in production. The above parameters are only for reference and are mainly based on actual vehicles. The core parameters and configuration remain unchanged. | |
| Vehicle design | Dongfeng Motor Company | ||
|
