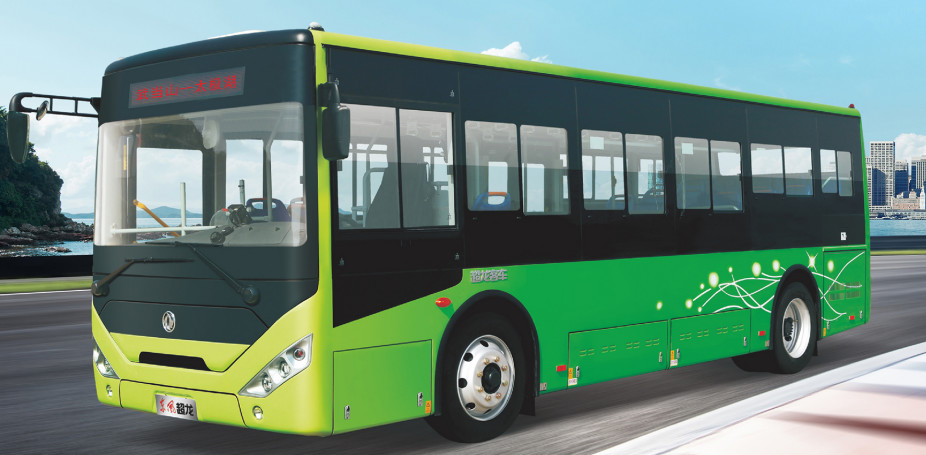

DongFeng 200KW Peak Power EV BUS Seat 30-65 Range 415KM EQ6850CTBEV2
| Place of Origin | China |
|---|---|
| Brand Name | DongFeng |
| Model Number | EQ6850CTBEV2 |
| Minimum Order Quantity | 1 unit |
| Price | Agree prices based on different user requirements |
| Packaging Details | No |
| Delivery Time | 45-60 day |
| Payment Terms | T/T |
| Supply Ability | More than 50 vehicles per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | 200KW EV BUS,415KM Electric Bus,415KM EV BUS |
||
|---|---|---|---|
Product Description
| Overall parameters | Length*width*height (mm) | 8540*2500*3050/3090/3250 | |
| Height inside the carriage (mm) | 2280 | ||
| Wheelbase (mm) | 4600 | ||
| Front overhang/rear overhang (mm) | 1900/2040 | ||
| Approach angle/departure angle (°) | 10/12 | ||
| Factory maximum total mass (kg) | 14000 | ||
| Rated number of passengers (person) | 65/16—30 | ||
| Maximum speed (km/h) | 69 | ||
| Track width (mm) | 2070/1860 | ||
| Chassis system | Bearing type | Full bearing | |
| Front axle/rear axle | Dongfeng Dena Bridge,front 4.5T and rear 9.5T | ||
| suspension | air suspension | ||
| steering | hydraulic power steering | ||
| transmission shaft | one segment | ||
| Brake type | Front disc rear drum | ||
| Brake | Air brake dryer condenser ABS self-adjusting arm shoe wear alarm | ||
| tyre | 255/70R22.5-16PR without spare wheel | ||
| blast pump | Oil free piston machine | ||
| other | Electronic fan | ||
| Powertrain | Motor model | TZ400XS090800 | |
| Motor manufacturer | Lvchi Precision | ||
| Location/fuel type | Rear/Lithium Iron Phosphate | ||
| Motor type | Permanent magnet synchronous motor | ||
| Rated/peak power (kw) | 100/200 | ||
| Rated/peak torque (N · m) | 1193/2000 | ||
| Battery capacity (kwh)/voltage (V) | CATL186.7/618.2 | ||
| Range(40km/h constant speed method) | 415km | ||
| Body | Body structure | Front and rear wall stamping | |
| floor | Bamboo floor | ||
| Door and door pump | Front single and middle double pneumatic inner swing passenger doors | ||
| Side window | The driver's window and the auxiliary driver's window are aluminum frame sliding windows, and the rest are embedded sliding windows | ||
| Windshield | Front windshield adhesive, rear windshield toughened | ||
| Rear view system | Steel frame asymmetric manual reversing mirror | ||
| air conditioning system | Overhead electric single cooling | ||
| Defroster | Electric defroster | ||
| Audiovisual system | player with microphone jack USB charging interface and multi-channel video recording system | ||
| Satellite positioning system | The Beidou satellite positioning driving recorder has built-in storage and upload functions (dual 32GSD cards), 5 probes, and a 7-inch LCD display | ||
| lamps and lanterns | Front and rear split lamps, front and rear fog lamps, side turn signal lamps, low beam height adjustment device | ||
| Wiper | Electric wiper | ||
| Hatch | Aluminum alloy battery compartment door | ||
| chair | 23+1 layout | ||
| meter | CAN instrument with a vehicle module | ||
| other | Secondary parameters | The parts and components are constantly updated in production. The above parameters are only for reference and are mainly based on actual vehicles. The core parameters and configuration remain unchanged. | |
| Vehicle design | Dongfeng Motor Company | ||
| OEM customization | Wuhan Junfeng Automobile Co., Ltd. | ||
