JUNGFENG Air Cross C5 configuration table |
||
| Version | JF-C5 C360(Intelligent version) | JF-C5 C400(vertical engine version) |
| Vehicle body specs | ||
| long × wide × Height (mm) | 4510×1860×1705 | |
| Wheelbase (mm) | 2730 | |
| Front/rear wheelbase (mm) | 1587/1621 | |
| Approach angle/departure angle (°) | 20/27 | |
| Luggage capacity (L) | 516-1310 (rear seat folding) | |
| Luggage capacity (L) | 53 | |
| Curb weight (kg) | 1485 | |
| Engine | ||
| Engine type | "Inline four cylinder, dual channel turbocharging, homogeneous combustion, CWT continuous variable timing system, and CWL intake continuous variable lift technology" | |
| engine intelligent start stop system | ● | |
| Engine displacement (L) | 1.598 | |
| Maximum power (kW/rpm) | 129/5500 | |
| Maximum torque (N · m/rpm) | 250/(1750~4500) | |
| WLTC comprehensive fuel consumption (L/100km) | 6.96 | |
| Maximum speed (km/h) | 200 | |
| emission standard | National VI | |
| Transmission | ||
| Transmission | 8-speed automatic transmission | |
| Yacht style electronic gear lever | ● | |
| Steering wheel shift paddles | ● | |
| Chassis and suspension | ||
| suspension system | Front: MacPherson independent suspension/Rear: Deformable crossbeam suspension | |
| PHCsuspension system | S (Four wheel) | |
| braking system | Front ventilation disc type/rear solid disc type | |
| steering system | EPS electronic power steering system | |
| Tire specifications | 225/55 R18 | |
| Wheel rim | 18 inch diamond cut pulsar aluminum alloy wheels | |

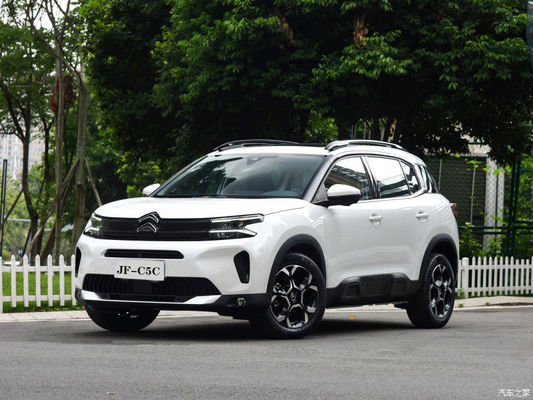

JF-C5C
