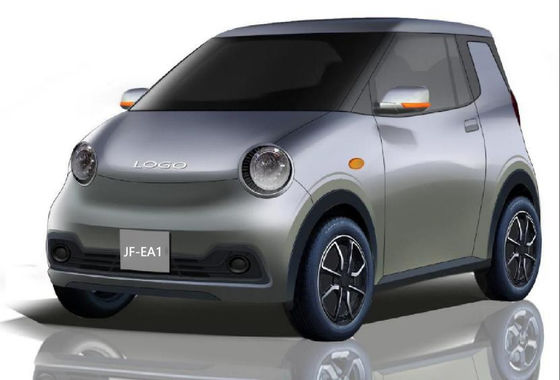

JunFeng Brand Lhd/Rhd /EU Pure electric JF-EA1 Mini SUV Wheelbase 1920mm range 200KM
| Place of Origin | China |
|---|---|
| Brand Name | Jun Feng |
| Model Number | JF-EA1 L7 LHD or RHD EV/ EU/ NEDC 150-200KM |
| Minimum Order Quantity | 2 unit |
| Packaging Details | No |
| Delivery Time | 30-45 Day |
| Payment Terms | T/T |
| Supply Ability | over 500 Unit / Mothly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | JF-EA1 Mini SUV,200KM Mini SUV |
||
|---|---|---|---|
Product Description
This model can accept CKD and SKD, and users can choose their own brand. LHD or RHD driving modes can be selected, and EU vehicle certification is also available.
The configuration table iss as follows.
| Vehicle configuration | Rear motor rear drive High range | Rear motor rear drive standard range |
| Type | mini SUV | mini SUV |
| Type of Energy | BEV | BEV |
| Length*Width*Height(mm) | 2890*1496*1565 | 2810*1496*1565 |
| Wheelbase(mm) | 1850 | 1920 |
| Body Structure | Two door two seat hatchback | Two door two seat hatchback |
| Maximum Speed(km/h) | 80 | 50 |
| Front Tread(mm) | 1312 | 1312 |
| Read Tread(mm) | 1310 | 1310 |
| Minimum Ground Clearance(mm) | 135 | 125 |
| Max Climbing(%) | ≥30% | ≥22% |
| Minimum turning radius(m) | ≤4.5 | ≤4.5 |
| Trunk Volume(L) | >160 | >160 |
| Curb Weight(kg) | ≤450Without battery weight) | ≤450(Without battery weight) |
| GVW(kg) | ≤600(Without battery weight) | ≤600(Without battery weight) |
| Maximum Power(kW) | 15 | 8 |
| Maximum torque(N·m) | 81 | / |
| Motor Type | Permanent magnet synchronous motor | Permanent magnet synchronous motor |
| Maximum Power of Rear Motor(kw) | 15 | 8 |
| Maximum Torque of Rear Motor(N.m) | 81 | / |
| Number of Driving Motors | 1 | 1 |
| Motor Layout | rear mounted | rear mounted |
| Number of Gears | 1 | 1 |
| Trasmission Type | Fixed gear ratio gearbox | Fixed gear ratio gearbox |
| Driving type | rear drive | rear drive |
| Battery | Lithium Iron Phosphate | Lithium Iron Phosphate |
| NEDC(km) | 150-200 | 150-200 |
| Slow Charge Time(h) | 7 | 7 |
| Battery Cooling Mode | forced air cooling | forced air cooling |
| Battery capacity(kWh) | 12 | 12 |
| Battery Energy Density(Wh/kg) | 175 | 175 |
| Front Suspension Type | McPherson independent suspension | McPherson independent suspension |
| Rear Suspension Type | McPherson independent suspension | McPherson independent suspension |
| Steering Type | Electric power assistance | Electric power assistance |
| Front Brake Type | disc | disc |
| Rear Brake Type | drum | drum |
| Parking Brake Type | Foot braking | Foot braking |
| Front Tyre | 155/65 R14 | 155/65 R13 |
| Rear Tyre | 155/65 R14 | 155/65 R13 |
| ABS | ● | ● |
| Front /Rear Parking Sensor | ●Rear parking radar | ●Rear parking radar |
| Driving Assistance Image | ●Rear View Camera | ●Rear View Camera |
| Braking Energy Recovery System | ● | ● |
| Hill-start Assist Control | ● | ● |
| IVI | ●10.25 inch | ●10.25 inch |
| OBD | ● | ● |
| Multimedia/Charging port | ● | ● |
| Number of USB/Type-C | ●2 in the front row | ●2 in the front row |
| Number of Speakers | ●2 horns(door) | ●2 horns(door) |
| AVAS | ● | ● |
| Wheel material | ●Aluminium | ●Aluminium |
| Key Type | ● remote key | ● remote key |
| PEPS-Start | ● button start | ● button start |
| Ext Rearview Mirror Function | ●Manual adjustment | ● Manual adjustment |
| Central Door Lock | ● | ● |
| Steering Wheel Material | plastics | plastics |
| Steering Wheel Position Adjustment | ● Manual adjustment up and down | ● Manual adjustment up and down |
| Shift Mode | ●column shift | ●column shift |
| Reading Lamp | ● | ● |
| Front/Rear Electric Window | ● | ● |
| Int Rearview Mirror Function | ● manual | ● manual |
| A/C Control Mode | ●Manual Air Conditioning | ●Manual Air Conditioning |
| Low Beam Type | ●halogen | ●halogen |
| High Beam type | ●halogen | ●halogen |
| High Brake Lamp | ● | ● |
| Brake Lamp | ● | ● |
| Rear Position Lamp | ● | ● |
| Side Reflex Reflector | ● | ● |
| Rear Reflex Reflector | ● | ● |
| Seat Fabric | ●PU | ●PU |
| Driver's Seat function | ●Front and rear manual ad justment | ●Front and rear manual adjustment |
| Front Seat | ●Front and rear manual ad justment | ●Front and rear manual adjustment |
| Front Seat Belt | ● | ● |
| Front Seat Belt Reminder | ● | ● |
