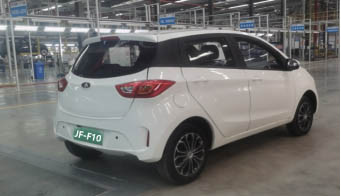

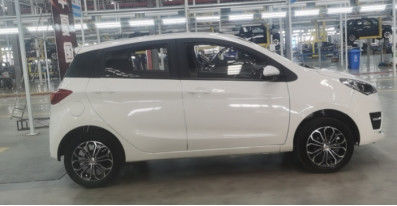

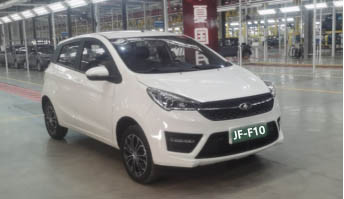

JunFeng LHD and RHD pure electric vehicle small-scale SUV JF-F10
| Place of Origin | China |
|---|---|
| Brand Name | Jun Feng |
| Model Number | JF-F10 left/Right Pure electric vehicles |
| Minimum Order Quantity | 2 unit |
| Price | FCA(email reply based on different models) |
| Delivery Time | 30-45 days |
| Payment Terms | T/T |
| Supply Ability | less than1000pcs/month (Orders must be made 30 days in advance if more than 1000) |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | JunFeng pure electric vehicle |
||
|---|---|---|---|
Product Description
| Dimensions&Specifications | |
| Overall dimensions(mm) | 3780*1650*1530 |
| Wheelbase(mm) | 2410 |
| Tread/Front/Rear(mm) | 1415/1417 |
| Front suspension/rear suspension (mm) | 790/580 |
| Approach angle (°) | 16°/15°(Empty/Full Load) |
| Departure angle (°) | 27°/25°(Empty/Full Load) |
| Maximum gradient | ≤20% |
| Rated load mass(kg) | 350 |
| Min.ground clearance(mm) | 150 |
| Minimum turning diameter (m) | 10 |
| Rated Passengers | 5 |
| Curb Weight(Kg) | 1130 |
| Power | |
| Position of Engine | Front |
| Motor type | Permanent magnet synchronous motor (water-cooled) |
| Motor/motor controller model | TZ180XS22H-320/MC3903-W |
| Rated Power | 22KW |
| Net weight of drive motor | 33kg |
| Rated rotation rate | 5500r/min |
| Maximum/continuous power | 45/22 |
| Max.Torque | 160/70 |
| Max.speed(Km/h) | 100Km/h |
| Range (km) | 300 |
| Charger power | 3.3 |
| DC pile charging time (SOC:20～80%) |
0.5h |
| Charging time of communication charging station | 6-8h |
| Home charging time | 8-9h |
| Battery type (cooling method) | Lithium iron phosphate power battery assembly (naturally cooled) |
| Maximum peak/continuous (room temperature) output power | 67/26 |
| Net weight of power battery | 205kg |
| system voltage | 320V |
| Total battery energy | 31 |
| Steering System | Gear rack electric booster |
| Brake System | Manual mechanical parking brake |
| Suspension System | Front:MC Pherson Independent Suspension |
| Rear:Semi drag rocker arm Independent suspension+Coil Spring | |
This model has a simple and elegant appearance, matched with smooth lines, affordable, good passability, and can choose from both left and right steering.
