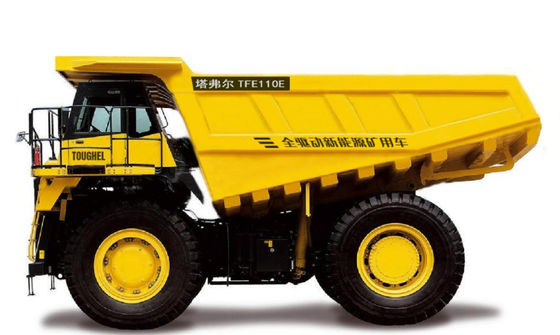

Full drive new energy mining vehicle with a load capacity of over 100 tons

  • Full drive new energy mining vehicle with a load capacity of over 100 tons
Place of Origin China
Brand Name Dongfeng Group Brand
Model Number JF-TF fully driven new energy mining vehicle
Minimum Order Quantity 2 unit
Price FCA(email reply based on different models)
Delivery Time 30-45 days
Payment Terms T/T
Supply Ability less than1000pcs/month(Orders must be made 30 days in advance if more than 1000)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description









Model Name TFE110FE TFE110E-1 TFE110E-2 TFE110E-3
Fuel type Hybrid Electric Electric Electric
Maximum total mass 110 110 110 110
Battery capacity(kwh) 270 422.88 657.8 845.76
charging method charging without charging station charging integrated charging and swapping integrated charging and swapping
Applicable working condition mixed working conditions downhill heavy load mixed working conditions uphill heavy load
Rated power of drive motor(kw) 200+360 200+360 200+360 200+360
Maximum loading capacity(m³) 42 42 42 42
Maximum payload(t) 70 70 70 70
Maximum fuel saving rate(%) 50 100 100 100
Maximum climbing gradient(%) 30 30 30 30
Maximum turning radius(m) 11.5 11.5 11.5 11.5





Full drive new energy mining vehicle with a load capacity of over 100 tons 0




In heavy load uphill conditions, we will collaborate with energy storage companies to establish battery swapping stations for users, with each vehicle's swapping time controlled within 15 minutes.





Full drive new energy mining vehicle with a load capacity of over 100 tons 1



In areas where conditions permit, a one-stop service system from power generation to energy storage, charging and swapping can be established in conjunction with wind and photovoltaic power generation enterprises.







Full drive new energy mining vehicle with a load capacity of over 100 tons 2



For heavy-duty downhill driving conditions, the Toughel fully driven pure electric mining vehicle recovers braking energy with the highest energy recovery efficiency, basically meeting the needs of no-load return and achieving basic no charging or low charging capacity.







Full drive new energy mining vehicle with a load capacity of over 100 tons 3



Full drive new energy mining vehicle with a load capacity of over 100 tons 4
